BExCS110-05D-B
In stock
SKU
BExCS110-05D-B

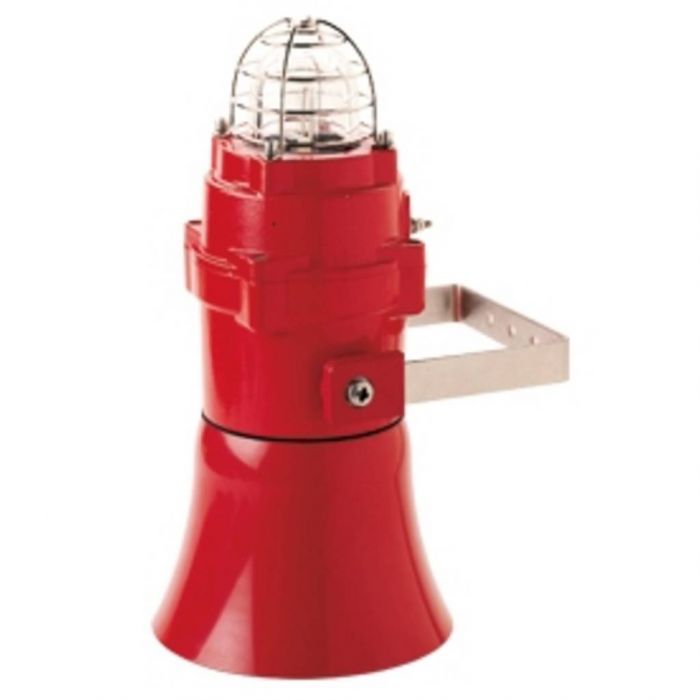

Combined device for visual and acoustic alarms
Combined device for visual and acoustic alarms
• stainless steel protection grid and mounting bracket in stainless steel for 360 ° positioning
• extremely intense light reflections thanks to the 5 Joule xenon flash
• 32 different tones including DIN tone, UKOOA / PFEER compliant, 2 externally operable tones (for CC via Plus or Minus) (shade chart on page 219)
• flash light and buzzer can be operated separately
• synchronized flash frequency (1 Hz) or mode of alternating flash in system operation
• high resistance to corrosion and suitability for the harshest environments
• adjustable volume (12 V DC version excluded)
• The flash light is resistant to vibration, shock and shock
| Color | Red |
|---|---|
| produttore | Hochiki |
| Open_Celling_Wall | Entrambi |
| IP Rate | IP67 |
| Analog Protocol | No Protocol - Conventional |
| Intrinsically Safe | No |
| SIL Approved | No |
| Marine Approved | No |
| Operating Range | 50/60Hz |
| Relay | No |
| Beacon | Yes |
| Operating Temperature Range | -50°C a +70°C |
| Decibel At 1 Mt | 110 dB |
| Absorption | 520mA |
| Approvals | KEMA 03 ATEX 2545 X |
| Electrical Specifications | 24 Vcc |
| Lens Color | Clear |
